Several tricks to identify the quality of LED display screen

The quality of an LED displaycan be judged on the following aspects :

1 . LED video wall flatness

The surface flatness of the display screen shall be within ± 1mm to ensure that the displayed image is not distorted . Local bulges or recesses will lead to dead corners of the visual angle of the display screen . The gap between the box and the box , and between the module and the module shall be within 1mm . If the gap is too large , it will lead to obvious boundary of the display screen and visual disharmony . The flatness is mainly determined by the production process .

2 . LED screen brightness and visual angle

The brightness of the indoor full-color screen should be more than 800cd / m2 , and the brightness of the outdoor full-color screen should be more than 5000cd / m2 to ensure the normal operation of the display screen , otherwise the displayed image will not be seen clearly because the brightness is too low . The brightness of the display screen is not the brighter the better . It should match the brightness of the LED package . Blindly increasing the current and increasing the brightness will cause the led to decrease too fast and the service life of the display screen to decline rapidly . The manufacturer can be required to provide parameter report for confirmation . The brightness of the screen is mainly determined by the quality of the LED tube core .

Visual angle refers to the maximum included angle of the whole screen content that you can see from the two measurements of the screen . The size of the viewing angle directly determines the audience of the display screen , so the larger the better . The visual angle should be more than 150 degrees . The size of the visual angle is mainly determined by the packaging mode of the die .

Several tips to teach " laymen " how to distinguish the quality of LED display screen

3 . LED display screen white balance effect

White balance effect is one of the most important indicators of the display screen . In terms of chromatics , pure white will be displayed only when the ratio of red , green and blue primary colors is 1 : 4.6 : 0.16 . If there is a deviation from the actual ratio , there will be a deviation from the white balance . Generally , we should pay attention to whether white is blue or yellow green . In monochrome , the smaller the brightness difference and wavelength difference between leading , the better .

Standing on the side of the screen , there is no color difference or color deviation , and the consistency are better . The white balance is mainly determined by the brightness wavelength ratio of LED tube core and the control system of display screen . The tube core also has an impact on the color restoration .

4 . LED walls color reducibility

Color reduction refers to the color reduction of the display screen , that is , the color displayed on the display screen should be highly consistent with the color of the playback source , so as to ensure the authenticity of the image .

5 . LED wall panel whether there are mosaics and dead spots

Mosaic refers to the small four squares that are always bright or black on the display screen , which is the phenomenon of module necrosis . The main reason are that the quality of IC or connector used in the display screen is not up to standard . Dead point refers to a single point that is always bright or dark on the display screen . The number of dead points is mainly determined by the quality of the tube core and whether the anti-static measures of the manufacturer are perfect .

6 . LED screen panel whether there are color patches

Color block refers to the obvious color difference between adjacent modules . The color transition is based on the module . The color block phenomenon is mainly caused by poor control system , low gray level and low scanning frequency .

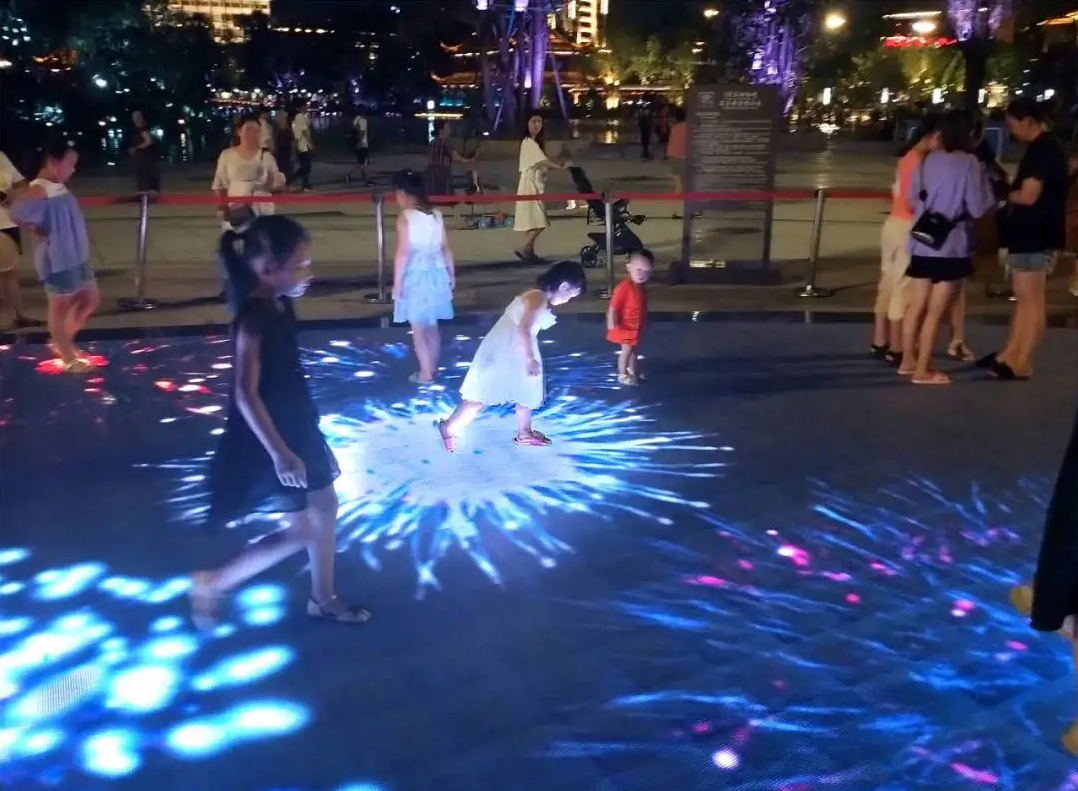

7 .Interactive led floor display stability

Stability refers to the reliable quality of LED display screen of the aging stage after it is made into a finished product . The aging record can be obtained from the manufacturer to determine the condition of the screen of / for aging .

8 . Screen display Safety

LED display screen is composed of several boxes . Each box must be provided with external grounding protection , and the grounding resistance should be less than 0 .1 euros . It can

withstand high voltage without breakdown of 1500V for 1min . Warning signs and slogans shall be provided at the high-voltage input terminal and the high-voltage wiring of the power supply .

9 . LED screen panel packaging and transportation

LED display screen is a kind of valuable goods with great weight . The packaging method used by the manufacturer is very important . Generally , it is packed as a single box . There must be protective objects of all sides of the box of cushioning . The internal activity space of the box of transportation is small . The outer packing box must be clearly marked .
