Main Features & Advantages Of Interactive LED Floor

INTERACTIVE-LED-FLOOR
Built-in optical sensors detect accurately on foot, hand, or anything else that placed on the floor, fast sensor response ensuring real-time experience, which make the floor truly interactive.
Interactive LED Floor
Matt surface, anti-scratch,
anti-slippery, anti-reflective,
noiseless, wide viewing angle, well balanced on contrast ratio, uniformity and brightness.

Interactive LED Floor
Consistent sensor response whether there is 1 or 1000 people on the floor.

Interactive LED Floor
Solid panel design enable 2000kg/sqm weight loading.

Interactive LED Floor
Easy and fast to build floor screen with side locating holes and height adjustable foot.
INTERACTIVE-LED-FLOOR
Height adjustable foot, overall installation height can be 12cm to 16cm
Interactive LED Floor
Sturdy and durable module, no deformation happens even with heavy loading.
Interactive LED Floor
Safe enough for ultra heavy weight
loading.


Interactive LED Floor Product Data Sheet

INDOOR INTERACTIVE LED FLOOR SPECIFICATIONS

INDOOR INTERACTIVE LED FLOOR SPECIFICATIONS
Pixel Pitch 2.97mm 3.91mm 4.81mm 5.2mm 6.25mm 7.8mm
LED Configuration 3-IN-1 SMD1415 3-IN-1 SMD1921 3-IN-1 SMD1921 3-IN-1 SMD1921 3-IN-1 SMD1921 3-IN-1 SMD2727
Max Brightness 2000 nits 2000 nits 2000 nits 2000 nits 2000 nits 2000 nits
Panel Dimensions 500x1000x70mm 500x1000x70mm 500x1000x70mm 500x1000x70mm 500x1000x70mm 500x1000x70mm
  500x500x70mm 500x500x70mm 500x500x70mm 500x500x70mm 500x500x70mm 500x500x70mm
Panel Resolution 168 x 336 128 x 256 104 x 208 96 x 192 80 x 160 64 x 128
  168 x 168 128 x 128 104 x 104 96 x 96 80 x 80 64 x 64
Weight Per Panel 22.5kg 22.5kg 22.5kg 22.5kg 22.5kg 22.5kg
  13.5kg 13.5kg 13.5kg 13.5kg 13.5kg 13.5kg
Weight Loading 2000kg/sqm 2000kg/sqm 2000kg/sqm 2000kg/sqm 2000kg/sqm 2000kg/sqm
Power Consumption(max) 650W/sqm 650W/sqm 650W/sqm 650W/sqm 650W/sqm 650W/sqm
Power Consumption(Avg) 240W/sqm 240W/sqm 240W/sqm 240W/sqm 240W/sqm 240W/sqm
Viewing angle 140° 140° 140° 140° 140° 140°
Refresh Rate >1920Hz >1920Hz >1920Hz >1920Hz >1920Hz >1920Hz
Grey Scale 16 bit 16 bit 16 bit 16 bit 16 bit 16 bit
Operation Temperature -20°C to 45°C -20°C to 45°C -20°C to 45°C -20°C to 45°C -20°C to 45°C -20°C to 45°C
Relative Humidity 10-90% RH 10-90% RH 10-90% RH 10-90% RH 10-90% RH 10-90% RH
IP Rating IP43 IP43 IP43 IP43 IP43 IP43
Certificate CE, ETL, FCC CE, ETL, FCC CE, ETL, FCC CE, ETL, FCC CE, ETL, FCC CE, ETL, FCC
The specifications are for reference only, actual values may vary.

INDOOR INTERACTIVE LED FLOOR SPECIFICATIONS

OUTDOOR INTERACTIVE LED FLOOR SPECIFICATIONS
Pixel Pitch 3.91mm 4.81mm 5.2mm 6.25mm 7.8mm 8.9mm
LED Configuration 3-IN-1 SMD1921 3-IN-1 SMD1921 3-IN-1 SMD1921 3-IN-1 SMD1921 3-IN-1 SMD2727 3-IN-1 SMD2727
Max Brightness 4000 nits 4000 nits 4000 nits 4500 nits 4500 nits 4500 nits
Panel Dimensions 500x1000x70mm 500x1000x70mm 500x1000x70mm 500x1000x70mm 500x1000x70mm 500x1000x70mm
  500x500x70mm 500x500x70mm 500x500x70mm 500x500x70mm 500x500x70mm 500x500x70mm
Panel Resolution 128 x 256 104 x 208 96 x 192 80 x 160 64 x 128 56 x 112
  128 x 128 104 x 104 96 x 96 80 x 80 64 x 64 56 x 56
Weight Per Panel 24kg 24kg 24kg 24kg 24kg 24kg
  14.5kg 14.5kg 14.5kg 14.5kg 14.5kg 14.5kg
Weight Loading 2000kg/sqm 2000kg/sqm 2000kg/sqm 2000kg/sqm 2000kg/sqm 2000kg/sqm
Power Consumption(max) 650W/sqm 650W/sqm 650W/sqm 650W/sqm 650W/sqm 650W/sqm
Power Consumption(Avg) 240W/sqm 240W/sqm 240W/sqm 240W/sqm 240W/sqm 240W/sqm
Viewing angle 140° 140° 140° 140° 140° 140°
Refresh Rate >1920Hz >1920Hz >1920Hz >1920Hz >1920Hz >1920Hz
Grey Scale 16 bit 16 bit 16 bit 16 bit 16 bit 16 bit
Operation Temperature -30°C to 50°C -30°C to 50°C -30°C to 50°C -30°C to 50°C -30°C to 50°C -30°C to 50°C
Relative Humidity 10-90% RH 10-90% RH 10-90% RH 10-90% RH 10-90% RH 10-90% RH
IP Rating IP65 IP65 IP65 IP65 IP65 IP65
Certificate CE, ETL, FCC CE, ETL, FCC CE, ETL, FCC CE, ETL, FCC CE, ETL, FCC CE, ETL, FCC
The specifications are for reference only, actual values may vary.

Application Of Interactive LED Floor

The interactive LED floor screens can be used for rental and permanent installations like concert tours, fashion shows, exhibitions, auto-shows, wedding parties, shopping malls, TV studios, night clubs, museums, retail stores, theme parks, children’s areas, immersive spaces, play zones, festivals, sport events, showrooms, plazas etc.

The interactive LED floor screens designed with built-in optical sensors, multi-touching design ensuring accurate tracking and real-time interactive experience; Anti-skidding floor surface make it safe access; Solid panel design, over 2000kg/sqm weight capacity.

The interactive LED floor screen models including PH2.97mm, PH3.91mm, PH4.81mm, PH5.2mm, PH6.25mm and PH7.8mm, both indoor and outdoor models are available.


Customized Service Of Interactive LED Floor

Customized solution is available, panel size and shape of the interactive LED floor can be customized according to your specific project. Besides, we also provide customized solutions for your immersive applications, XR applications for filming and production etc.


Here Is The Information You Want To Know

Interactive LED Floor Auto shows

  • The LED floor tiles can be used for rental events like concert tours?

    Both interactive LED floor tiles and LED floor tiles can be used for concert tours. Tool-free height adjustable installation foot ensuring quick on-site installation and dismantle.

  • The LED floor screens can be front serviced?

    LED floor screens can be front serviced, the 500x500mm or 500x1000mm panel can be taken out from the middle of the screen by vacuum sucker.

  • The interactive LED video floor panel can be waterproof?

    Outdoor interactive LED video floor panel is IP67 rating front and rear, fully waterproof for outdoor permanent installations. P2.97mm, P3.91mm, P4.81mm, P5.2mm and P6.25mm outdoor interactive LED floors are available.

  • What is the delivery time for interactive LED video dance floor?

    Delivery time for interactive LED video dance floor is around 25 working days for orders within 300sqm.

  • What’s the applications for Interactive LED floor?

    Both LED floor and interactive LED floor can be used for indoor and outdoor, rental and permanent installations, like shopping mall, TV studios, night clubs, fashion shows, exhibitions, museums, auto-shows, concert tours, retail stores, plaza, theme parks, children areas etc.

  • What’s the weight loading for LED floor display? The LED floor can be used for auto shows?

    Over 2000kg/sqm weight loading plus anti-slippery mask make the LED floor display strong and safe enough to be used for auto shows.

  • The interactive video contents for LED floor can be customized easily?

    We offer video protocol for you to make customized interactive video contents, then interactive LED floor contents can be made freely.

  • What’s the key factors for LED floor screen to achieve interactive function?

    The key points for LED floor screen to achieve interactive function are video controller, optical sensors(built inside the LED floor tile) and interactive video contents.

  • What kinds of pixel pitches are available for LED floor and interactive LED floor?

    Both LED floor and interactive LED floor can be made with PH2.97mm, PH3.91mm, PH4.81mm, PH5.2mm, PH6.25mm and PH7.8mm. Indoor LED floor display ranging from PH2.97mm to PH7.8mm, outdoor LED floor display ranging from PH3.91mm to PH7.8mm.

  • Can we have height adjustable installation foot for LED floor?

    Yes. Height adjustable installation foot is available for LED floor screens, the height of installation foot can be 50mm to 88mm.

Other Related Products

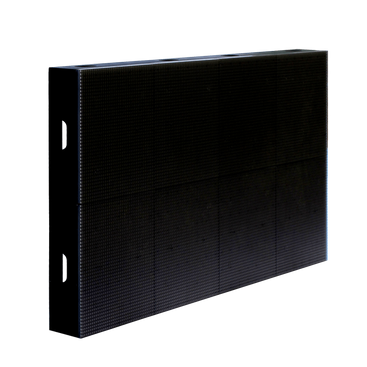

INTERACTIVE LED FLOOR
INTERACTIVE LED FLOOR
Indoor and outdoor fixed Installation
2.97mm 3.91mm 4.8mm 5.2mm 6.25mm 7.8mm
500x500mm and 500x1000mm

Interactive LED video floor screens have been used for indoor and outdoor fixed installations, also for rental and staging. Optical sensors embedded in LED floor panels, the sensors can be activated by foot, hand, or anything else that placed on the LED floor screen; Multi-touching LED floor panels, fast sensor response and accurate tracking ensuring real-time interactive experience; Anti-skidding floor screen surface, safe access; Solid LED panel, 2000kg per sqm weight capacity; IP65 rating is available; Easy to create video contents. Interactive LED floors are popular for immersive scene, filming, TV productions, children’s area, play zones, shopping centers, theme parks, health centers, wedding ceremonies, museums, showrooms, product launches and retail stores.
0
0

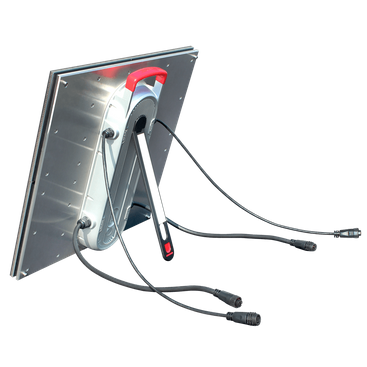

RENTAL LED FLOOR
RENTAL LED FLOOR
Indoor and outdoor rental
2.97mm 3.91mm 4.8mm 5.2mm 6.25mm 7.8mm
500x500mm aluminum panel

Rental LED floor is designed for indoor and outdoor rental applications, interactive options also available. Matt black mask, no reflection, great color consistency and superb contrast ratio, ideal for TV studios and events with camera shooting; Anti-skidding floor surface, safe access; Light weight aluminum panel, great heat dissipation; With holder on the back, easy and quick for installation and dismantle; Over 2000kg per sqm weight capacity make the LED floor ideal for auto shows and exhibitions; IP65 rating is available for outdoor applications; Height adjustable installation feet, easy levelling for non-flat installation site; Rental LED floor screens have also been used for concert tours, product launches, wedding parties, fashion shows, exhibitions, festivals, coferences, trade shows.

0
0

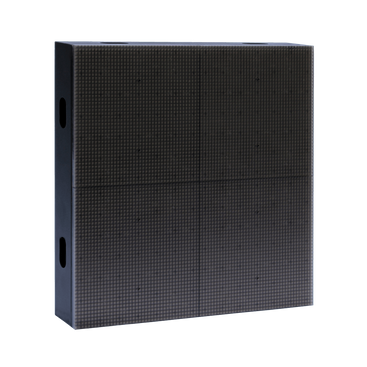

INDOOR LED FLOOR
INDOOR LED FLOOR
Indoor fixed installation
2.97mm 3.91mm 4.81mm 5.2mm 6.25mm 7.8mm
500x500mm and 500x1000mm

Indoor LED floor screens are made for indoor fixed installations. Matt black screen surface, great color uniformity and superb contrast ratio, no reflection, ideal for TV studio, live shows etc with camera shooting; Solid LED panel, over 2000kg per sqm loading capacity; Wear-resistant and anti-skidding LED floor screen surface, safe access; Customized LED panel size is available; Height adjustable installation feet, easy levelling, fast installation and dismantle; Fanless design, noise free; Very easy service, LED floor panel can be taken out from the middle of LED floor screen by customized vaccum suckers. Indoor LED video floor screen has been used for retail stores, immersive scene, filming, theme parks, showrooms, museums, convention centers, theaters, night clubs and shopping malls.

0
0

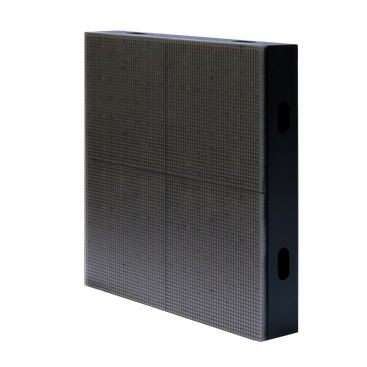

OUTDOOR LED FLOOR
